Chapter 7. Move and Neighborhood Selection

7.1. Move and Neighborhood Introduction
7.1.1. What is a Move?
7.1.2. What is a MoveSelector?
7.1.3. Subselecting of Entities, Values and Other Moves
7.2. Generic MoveSelectors
7.2.1. changeMoveSelector
7.2.2. swapMoveSelector
7.2.3. pillarChangeMoveSelector
7.2.4. pillarSwapMoveSelector
7.2.5. tailChainSwapMoveSelector or 2-opt (chained variables only)
7.2.6. subChainChangeMoveSelector (chained variables only)
7.2.7. subChainSwapMoveSelector (chained variables only)
7.3. Combining Multiple MoveSelectors
7.3.1. unionMoveSelector
7.3.2. cartesianProductMoveSelector
7.4. EntitySelector
7.5. ValueSelector
7.6. General Selector Features
7.6.1. CacheType: Create Moves Ahead of Time or Just In Time
7.6.2. SelectionOrder: Original, Sorted, Random, Shuffled or Probabilistic
7.6.3. Recommended Combinations of CacheType and SelectionOrder
7.6.4. Filtered Selection
7.6.5. Sorted Selection
7.6.6. Probabilistic Selection
7.6.7. Limited Selection
7.6.8. Mimic Selection (Record/Replay)
7.6.9. Nearby Selection
7.7. Custom Moves
7.7.1. Which Move Types Might be Missing in my Implementation?
7.7.2. Custom Moves Introduction
7.7.3. The Interface Move
7.7.4. MoveListFactory: the Easy Way to Generate Custom Moves
7.7.5. MoveIteratorFactory: Generate Custom Moves Just in Time

A Move is a change (or set of changes) from a solution A to a solution B. For example, the move below changes queen C from row 0 to row 2:

The new solution is called a neighbor of the original solution, because it can be reached in a single Move. Although a single move can change multiple queens, the neighbors of a solution should always be a very small subset of all possible solutions. For example, on that original solution, these are all possible changeMove's:

If we ignore the 4 changeMove's that have not impact and are therefore not doable, we can see that number of moves is n * (n - 1) = 12. This is far less than the number of possible solutions, which is n ^ n = 256. As the problem scales out, the number of possible moves increases far less than the number of possible solutions.

Yet, in 4 changeMove's or less we can reach any solution. For example we can reach a very different solution in 3 changeMove's:

All optimization algorithms use Move's to transition from one solution to a neighbor solution. Therefore, all the optimization algorithms are confronted with Move selection: the craft of creating and iterating moves efficiently and the art of finding the most promising subset of random moves to evaluate first.

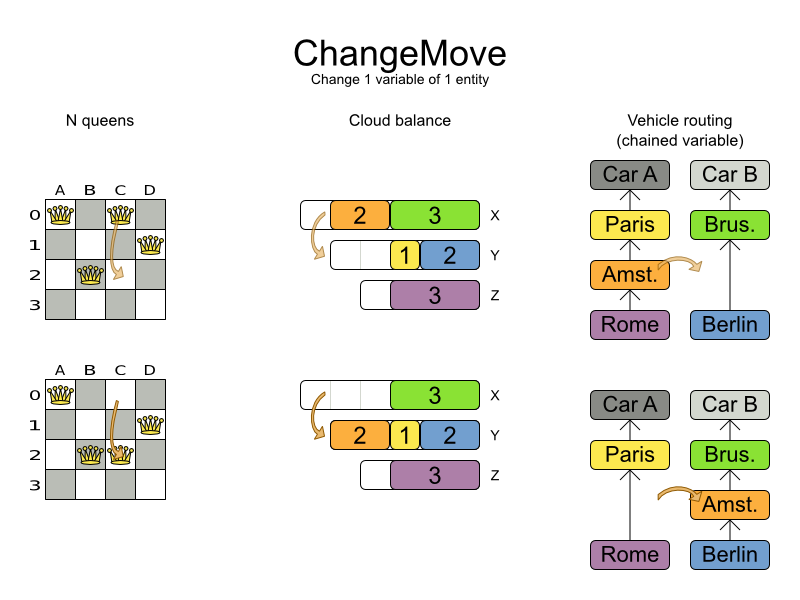

For 1 planning variable, the ChangeMove selects 1 planning entity and 1 planning value and assigns the entity's variable to that value.

Simplest configuration:

    <changeMoveSelector/>

If there are multiple entity classes or multiple planning variables for 1 entity class, a simple configuration will automatically unfold into a union of ChangeMove selectors for every planning variable.

Advanced configuration:

    <changeMoveSelector>
      ... <!-- Normal selector properties -->
      <entitySelector>
        <entityClass>...Lecture</entityClass>
        ...
      </entitySelector>
      <valueSelector>
        <variableName>room</variableName>
        ...
        <nearbySelection>...</nearbySelection>
      </valueSelector>
    </changeMoveSelector>

A ChangeMove is the finest grained move.

Important

Almost every moveSelector configuration injected into a metaheuristic algorithm should include a changeMoveSelector or a custom implementation. This guarantees that every possible Solution can be reached through applying a number of moves in sequence (not taking score traps into account). Of course, normally it is unioned with other, more coarse grained move selectors.

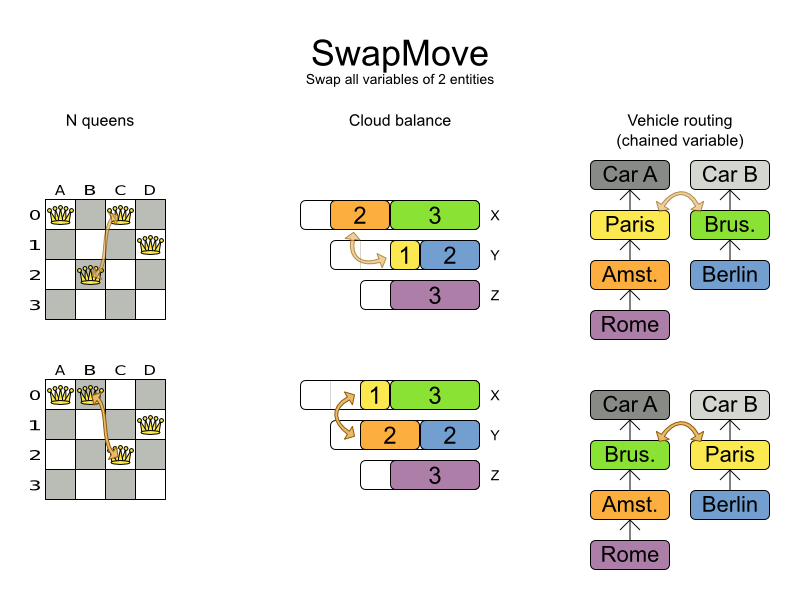

The SwapMove selects 2 different planning entities and swaps the planning values of all their planning variables.

Although a SwapMove on a single variable is essentially just 2 ChangeMoves, it's often the winning step where the first of the 2 ChangeMoves would not be the winning step because it leaves the solution in a state with broken hard constraints. For example: swapping the room of 2 lectures doesn't bring the solution in a intermediate state where both lectures are in the same room which breaks a hard constraint.

Simplest configuration:

    <swapMoveSelector/>

If there are multiple entity classes, a simple configuration will automatically unfold into a union of SwapMove selectors for every entity class.

Advanced configuration:

    <swapMoveSelector>
      ... <!-- Normal selector properties -->
      <entitySelector>
        <entityClass>...Lecture</entityClass>
        ...
      </entitySelector>
      <secondaryEntitySelector>
        <entityClass>...Lecture</entityClass>
        ...
        <nearbySelection>...</nearbySelection>
      </secondaryEntitySelector>
      <variableNameInclude>room</variableNameInclude>
      <variableNameInclude>...</variableNameInclude>
    </swapMoveSelector>

The secondaryEntitySelector is rarely needed: if it is not specified, entities from the same entitySelector are swapped.

If one or more variableNameInclude properties are specified, not all planning variables will be swapped, but only those specified. For example for course scheduling, specifying only variableNameInclude room will make it only swap room, not period.

A pillar is a set of planning entities which have the same planning value(s) for their planning variable(s). The PillarChangeMove selects 1 entity pillar (or subset of those) and changes the value of 1 variable (which is the same for all entities) to another value.

In the example above, queen A and C have the same value (row 0) and are moved to row 2. Also the yellow and blue process have the same value (computer Y) and are moved to computer X.

Simplest configuration:

    <pillarChangeMoveSelector/>

Advanced configuration:

    <pillarSwapMoveSelector>
      ... <!-- Normal selector properties -->
      <pillarSelector>
        <entitySelector>
          <entityClass>...Lecture</entityClass>
          ...
        </entitySelector>
        <subPillarEnabled>true</subPillarEnabled>
        <minimumSubPillarSize>1</minimumSubPillarSize>
        <maximumSubPillarSize>1000</maximumSubPillarSize>
      </pillarSelector>
      <valueSelector>
        <variableName>room</variableName>
        ...
      </valueSelector>
    </pillarSwapMoveSelector>

A sub pillar is a subset of entities that share the same value(s) for their variable(s). For example if queen A, B, C and D are all located on row 0, they are a pillar and [A, D] is one of the many sub pillars. If subPillarEnabled (defaults to true) is false, no sub pillars are selected. If sub pillars are enabled, the pillar itself is also included and the properties minimumSubPillarSize (defaults to 1) and maximumSubPillarSize (defaults to infinity) limit the size of the selected (sub) pillar.

The other properties are explained in changeMoveSelector.

A tailChain is a set of planning entities with a chained planning variable which form a last part of a chain. The tailChainSwapMove selects a tail chain and swaps it with the tail chain of another planning value (in a different or the same anchor chain). If the targeted planning value, doesn't have a tail chain, it swaps with nothing (resulting in a change like move). If it occurs within the same anchor chain, a partial chain reverse occurs. In academic papers, this is often called a 2-opt move.

Simplest configuration:

    <tailChainSwapMoveSelector/>

Advanced configuration:

    <subChainChangeMoveSelector>
      ... <!-- Normal selector properties -->
      <entitySelector>
        <entityClass>...Customer</entityClass>
        ...
      </entitySelector>
      <valueSelector>
        <variableName>previousStandstill</variableName>
        ...
        <nearbySelection>...</nearbySelection>
      </valueSelector>
    </subChainChangeMoveSelector>

The entitySelector selects the start of the tail chain that is being moved. The valueSelector selects to where that tail chain is moved. If it has a tail chain itself, that is moved to the location of the original tail chain. It uses a valueSelector instead of a secondaryEntitySelector to be able to include all possible 2opt moves (such as moving to the end of a tail) and to work correctly with nearby selection (because of asymmetric distances and also swapped entity distance gives an incorrect selection probability).

Note

Although subChainChangeMoveSelector and subChainSwapMoveSelector include almost every possible tailChainSwapMove, experiments have shown that focusing on tailChainSwapMoves increases efficiency.

A subChain is a set of planning entities with a chained planning variable which form part of a chain. The subChainChangeMoveSelector selects a subChain and moves it to another place (in a different or the same anchor chain).

Simplest configuration:

    <subChainChangeMoveSelector/>

Advanced configuration:

    <subChainChangeMoveSelector>
      ... <!-- Normal selector properties -->
      <entityClass>...Customer</entityClass>
      <subChainSelector>
        <valueSelector>
          <variableName>previousStandstill</variableName>
          ...
        </valueSelector>
        <minimumSubChainSize>2</minimumSubChainSize>
        <maximumSubChainSize>40</maximumSubChainSize>
      </subChainSelector>
      <valueSelector>
        <variableName>previousStandstill</variableName>
        ...
      </valueSelector>
      <selectReversingMoveToo>true</selectReversingMoveToo>
    </subChainChangeMoveSelector>

The subChainSelector selects a number of entities, no less than minimumSubChainSize (defaults to 1) and no more than maximumSubChainSize (defaults to infinity).

The selectReversingMoveToo property (defaults to true) enables selecting the reverse of every subchain too.

A unionMoveSelector selects a Move by selecting 1 of its MoveSelector children to supply the next Move.

Simplest configuration:

    <unionMoveSelector>
      <...MoveSelector/>
      <...MoveSelector/>
      <...MoveSelector/>
      ...
    </unionMoveSelector>

Advanced configuration:

    <unionMoveSelector>
      ... <!-- Normal selector properties -->
      <selectorProbabilityWeightFactoryClass>...ProbabilityWeightFactory</selectorProbabilityWeightFactoryClass>
      <changeMoveSelector>
        <fixedProbabilityWeight>...</fixedProbabilityWeight>
        ...
      </changeMoveSelector>
      <swapMoveSelector>
        <fixedProbabilityWeight>...</fixedProbabilityWeight>
        ...
      </swapMoveSelector>
      <...MoveSelector>
        <fixedProbabilityWeight>...</fixedProbabilityWeight>
        ...
      </...MoveSelector>
      ...
    </unionMoveSelector>

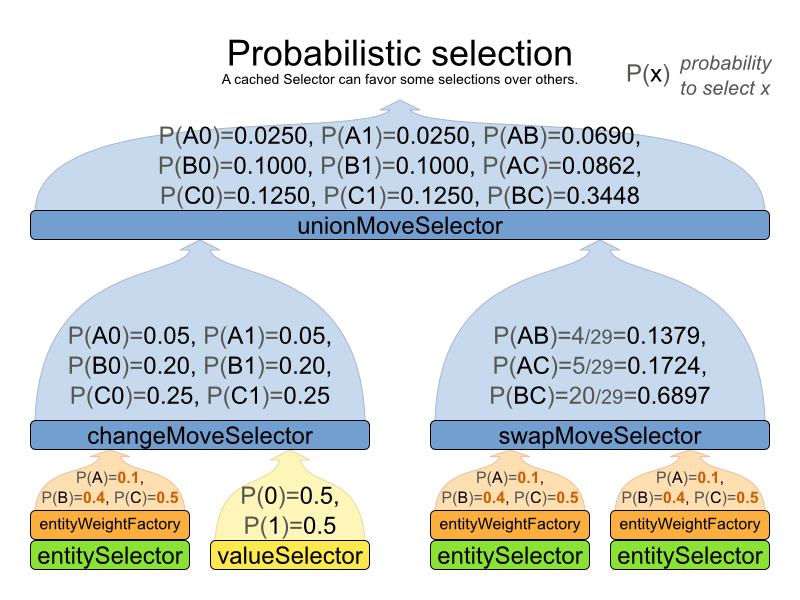

The selectorProbabilityWeightFactory determines in selectionOrder RANDOM how often a MoveSelector child is selected to supply the next Move. By default, each MoveSelector child has the same chance of being selected.

Change the fixedProbabilityWeight of such a child to select it more often. For example, the unionMoveSelector can return a SwapMove twice as often as a ChangeMove:

    <unionMoveSelector>
      <changeMoveSelector>
        <fixedProbabilityWeight>1.0</fixedProbabilityWeight>
        ...
      </changeMoveSelector>
      <swapMoveSelector>
        <fixedProbabilityWeight>2.0</fixedProbabilityWeight>
        ...
      </swapMoveSelector>
    </unionMoveSelector>

The number of possible ChangeMoves is very different from the number of possible SwapMoves and furthermore it's problem dependent. To give each individual Move the same selection chance (as opposed to each MoveSelector), use the FairSelectorProbabilityWeightFactory:

    <unionMoveSelector>
      <selectorProbabilityWeightFactoryClass>org.optaplanner.core.impl.heuristic.selector.common.decorator.FairSelectorProbabilityWeightFactory</selectorProbabilityWeightFactoryClass>
      <changeMoveSelector/>
      <swapMoveSelector/>
    </unionMoveSelector>

Simplest configuration:

      <entitySelector/>

Advanced configuration:

      <entitySelector>
        ... <!-- Normal selector properties -->
        <entityClass>org.optaplanner.examples.curriculumcourse.domain.Lecture</entityClass>
      </entitySelector>

The entityClass property is only required if it cannot be deduced automatically because there are multiple entity classes.

Simplest configuration:

      <valueSelector/>

Advanced configuration:

      <valueSelector>
        ... <!-- Normal selector properties -->
        <variableName>room</variableName>
      </valueSelector>

The variableName property is only required if it cannot be deduced automatically because there are multiple variables (for the related entity class).

In exotic Construction Heuristic configurations, the entityClass from the EntitySelector sometimes needs to be downcasted, which can be done with the property downcastEntityClass:

      <valueSelector>
        <downcastEntityClass>...LeadingExam</downcastEntityClass>
        <variableName>period</variableName>
      </valueSelector>

If a selected entity cannot be downcasted, the ValueSelector is empty for that entity.

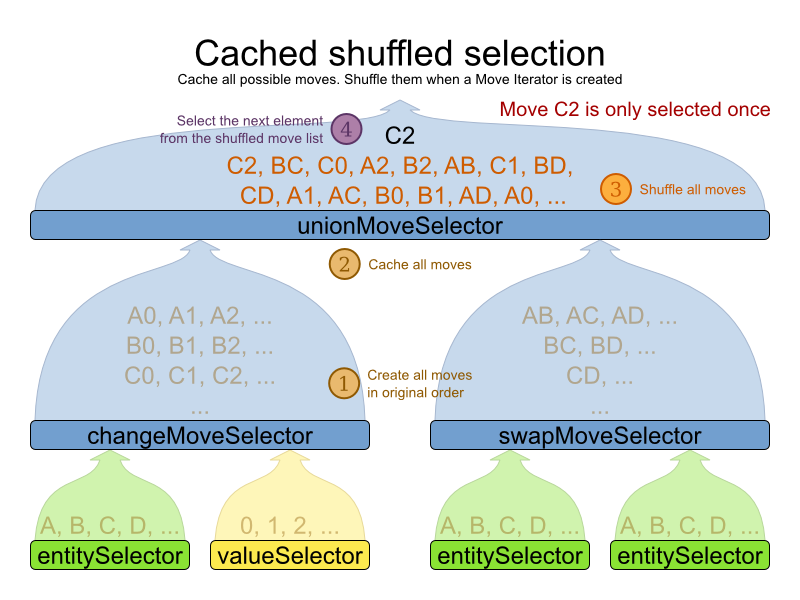

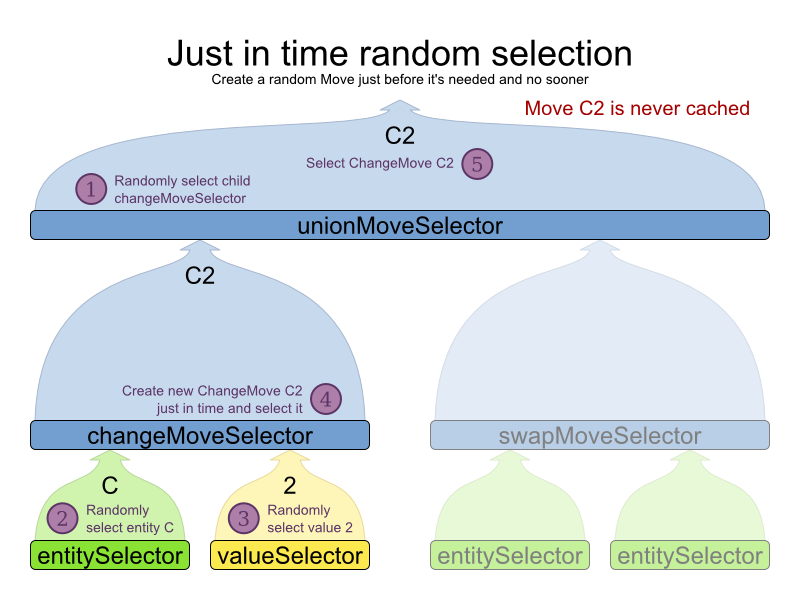

A Selector's cacheType determines when a selection (such as a Move, an entity, a value, ...) is created and how long it lives.

Almost every Selector supports setting a cacheType:

    <changeMoveSelector>
      <cacheType>PHASE</cacheType>
      ...
    </changeMoveSelector>

The following cacheTypes are supported:

A cacheType can be set on composite selectors too:

    <unionMoveSelector>
      <cacheType>PHASE</cacheType>
      <changeMoveSelector/>
      <swapMoveSelector/>
      ...
    </unionMoveSelector>

Nested selectors of a cached selector cannot be configured to be cached themselves, unless it's a higher cacheType. For example: a STEP cached unionMoveSelector can hold a PHASE cached changeMoveSelector, but not a STEP cached changeMoveSelector.

A Selector's selectionOrder determines the order in which the selections (such as Moves, entities, values, ...) are iterated. An optimization algorithm will usually only iterate through a subset of its MoveSelector's selections, starting from the start, so the selectionOrder is critical to decide which Moves are actually evaluated.

Almost every Selector supports setting a selectionOrder:

    <changeMoveSelector>
      ...
      <selectionOrder>RANDOM</selectionOrder>
      ...
    </changeMoveSelector>

The following selectionOrders are supported:

A selectionOrder can be set on composite selectors too.

Note

When a Selector is cached, all of its nested Selectors will naturally default to selectionOrder ORIGINAL. Avoid overwriting the selectionOrder of those nested Selectors.

There can be certain moves that you don't want to select, because:

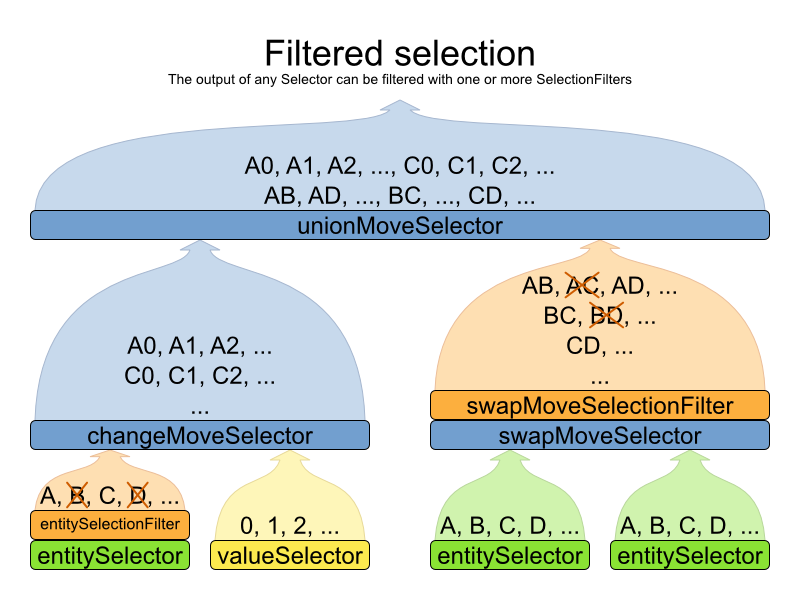

Filtered selection can happen on any Selector in the selector tree, including any MoveSelector, EntitySelector or ValueSelector. It works with any cacheType and selectionOrder.

Filtering uses the interface SelectionFilter:

public interface SelectionFilter<T> {

    boolean accept(ScoreDirector scoreDirector, T selection);

}

Implement the accept method to return false on a discarded selection. Unaccepted moves will not be selected and will therefore never have their doMove method called.

public class DifferentCourseSwapMoveFilter implements SelectionFilter<SwapMove> {

    public boolean accept(ScoreDirector scoreDirector, SwapMove move) {
        Lecture leftLecture = (Lecture) move.getLeftEntity();
        Lecture rightLecture = (Lecture) move.getRightEntity();
        return !leftLecture.getCourse().equals(rightLecture.getCourse());
    }

}

Apply the filter on the lowest level possible. In most cases, you'll need to know both the entity and the value involved and you'll have to apply a filterClass on the moveSelector:

    <swapMoveSelector>
      <filterClass>org.optaplanner.examples.curriculumcourse.solver.move.DifferentCourseSwapMoveFilter</filterClass>
    </swapMoveSelector>

But if possible, apply it on a lower levels, such as a filterClass on the entitySelector or valueSelector:

    <changeMoveSelector>
      <entitySelector>
        <filterClass>...EntityFilter</filterClass>
      </entitySelector>
    </changeMoveSelector>

You can configure multiple filterClass elements on a single selector.

Sorted selection can happen on any Selector in the selector tree, including any MoveSelector, EntitySelector or ValueSelector. It does not work with cacheType JUST_IN_TIME and it only works with selectionOrder SORTED.

It's mostly used in construction heuristics.

Some Selector types implement a SorterManner out of the box:

If you need the entire Solution to sort a Selector, use a SelectionSorterWeightFactory instead:

public interface SelectionSorterWeightFactory<Sol extends Solution, T> {

    Comparable createSorterWeight(Sol solution, T selection);

}
public class QueenDifficultyWeightFactory implements SelectionSorterWeightFactory<NQueens, Queen> {

    public Comparable createSorterWeight(NQueens nQueens, Queen queen) {
        int distanceFromMiddle = calculateDistanceFromMiddle(nQueens.getN(), queen.getColumnIndex());
        return new QueenDifficultyWeight(queen, distanceFromMiddle);
    }

    // ...

    public static class QueenDifficultyWeight implements Comparable<QueenDifficultyWeight> {

        private final Queen queen;
        private final int distanceFromMiddle;

        public QueenDifficultyWeight(Queen queen, int distanceFromMiddle) {
            this.queen = queen;
            this.distanceFromMiddle = distanceFromMiddle;
        }

        public int compareTo(QueenDifficultyWeight other) {
            return new CompareToBuilder()
                    // The more difficult queens have a lower distance to the middle
                    .append(other.distanceFromMiddle, distanceFromMiddle) // Decreasing
                    // Tie breaker
                    .append(queen.getColumnIndex(), other.queen.getColumnIndex())
                    .toComparison();
        }

    }

}

You 'll also need to configure it (unless it's annotated on the domain model and automatically applied by the optimization algorithm):

    <entitySelector>
      <cacheType>PHASE</cacheType>
      <selectionOrder>SORTED</selectionOrder>
      <sorterWeightFactoryClass>...QueenDifficultyWeightFactory</sorterWeightFactoryClass>
      <sorterOrder>DESCENDING</sorterOrder>
    </entitySelector>

Selecting all possible moves sometimes does not scale well enough, especially for construction heuristics (which don't support acceptedCountLimit).

To limit the number of selected selection per step, apply a selectedCountLimit on the selector:

    <changeMoveSelector>
      <selectedCountLimit>100</selectedCountLimit>
    </changeMoveSelector>

Note

To scale Local Search, setting acceptedCountLimit is usually better than using selectedCountLimit.

In some use cases (such as TSP and VRP, but also in non-chained variable cases), changing entities to nearby values or swapping nearby entities can heavily increase scalability and improve solution quality.

Nearby selection increases the probability of selecting an entity or value which is nearby to the first entity being moved in that move.

The distance between 2 entities or values is domain specific. Therefore, implement the NearbyDistanceMeter interface:

public interface NearbyDistanceMeter<O, D> {

    double getNearbyDistance(O origin, D destination);

}

It returns a double which represents the distance:

public class CustomerNearbyDistanceMeter implements NearbyDistanceMeter<Customer, Standstill> {

    public double getNearbyDistance(Customer origin, Standstill destination) {
        return origin.getDistanceTo(destination);
    }

}

To configure nearby selection, add a nearbySelection element in the entitySelector or valueSelector and use mimic selection to specify which entity should be near by the selection.

    <unionMoveSelector>
      <changeMoveSelector>
        <entitySelector id="entitySelector1"/>
        <valueSelector>
          <nearbySelection>
            <originEntitySelector mimicSelectorRef="entitySelector1"/>
            <nearbyDistanceMeterClass>...CustomerNearbyDistanceMeter</nearbyDistanceMeterClass>
            <parabolicDistributionSizeMaximum>40</parabolicDistributionSizeMaximum>
          </nearbySelection>
        </valueSelector>
      </changeMoveSelector>
      <swapMoveSelector>
        <entitySelector id="entitySelector2"/>
        <secondaryEntitySelector>
          <nearbySelection>
            <originEntitySelector mimicSelectorRef="entitySelector2"/>
            <nearbyDistanceMeterClass>...CustomerNearbyDistanceMeter</nearbyDistanceMeterClass>
            <parabolicDistributionSizeMaximum>40</parabolicDistributionSizeMaximum>
          </nearbySelection>
        </secondaryEntitySelector>
      </swapMoveSelector>
      <tailChainSwapMoveSelector>
        <entitySelector id="entitySelector3"/>
        <valueSelector>
          <nearbySelection>
            <originEntitySelector mimicSelectorRef="entitySelector3"/>
            <nearbyDistanceMeterClass>...CustomerNearbyDistanceMeter</nearbyDistanceMeterClass>
            <parabolicDistributionSizeMaximum>40</parabolicDistributionSizeMaximum>
          </nearbySelection>
        </valueSelector>
      </tailChainSwapMoveSelector>
    </unionMoveSelector>

A distributionSizeMaximum parameter should not be 1 because if the nearest is already the planning value of the current entity, then the only move that is selectable is not doable.

To allow every element to be selected, regardless of the number of entities, only set the distribution type (so without a distributionSizeMaximum parameter):

  <nearbySelection>
    <nearbySelectionDistributionType>PARABOLIC_DISTRIBUTION</nearbySelectionDistributionType>
  </nearbySelection>

The following NearbySelectionDistributionTypes are supported:

  • BLOCK_DISTRIBUTION: Only the n nearest are selected, with an equal probability. For example, select the 20 nearest:

      <nearbySelection>
        <blockDistributionSizeMaximum>20</blockDistributionSizeMaximum>
      </nearbySelection>
  • LINEAR_DISTRIBUTION: Nearest elements are selected with a higher probability. The probability decreases linearly.

      <nearbySelection>
        <linearDistributionSizeMaximum>40</linearDistributionSizeMaximum>
      </nearbySelection>
  • PARABOLIC_DISTRIBUTION (recommended): Nearest elements are selected with a higher probability.

      <nearbySelection>
        <parabolicDistributionSizeMaximum>80</parabolicDistributionSizeMaximum>
      </nearbySelection>
  • BETA_DISTRIBUTION: Selection according to a beta distribution. Slows down the solver significantly.

      <nearbySelection>
        <betaDistributionAlpha>1</betaDistributionAlpha>
        <betaDistributionBeta>5</betaDistributionBeta>
      </nearbySelection>

As always, use the Benchmarker to tweak values if desired.

To determine which move types might be missing in your implementation, run a Benchmarker for a short amount of time and configure it to write the best solutions to disk. Take a look at such a best solution: it will likely be a local optima. Try to figure out if there's a move that could get out of that local optima faster.

If you find one, implement that coarse-grained move, mix it with the existing moves and benchmark it against the previous configurations to see if you want to keep it.

Your custom moves must implement the Move interface:

public interface Move {

    boolean isMoveDoable(ScoreDirector scoreDirector);

    Move createUndoMove(ScoreDirector scoreDirector);
    void doMove(ScoreDirector scoreDirector);

    Collection<? extends Object> getPlanningEntities();
    Collection<? extends Object> getPlanningValues();

}

Let's take a look at the Move implementation for 4 queens which moves a queen to a different row:

public class RowChangeMove extends AbstractMove {

    private Queen queen;
    private Row toRow;

    public RowChangeMove(Queen queen, Row toRow) {
        this.queen = queen;
        this.toRow = toRow;
    }

    // ... see below

}

An instance of RowChangeMove moves a queen from its current row to a different row.

Planner calls the doMove(ScoreDirector) method to do a move, which calls doMoveOnGenuineVariables(ScoreDirector). The Move implementation must notify the ScoreDirector of any changes it makes to planning entity's variables:

    public void doMoveOnGenuineVariables(ScoreDirector scoreDirector) {
        scoreDirector.beforeVariableChanged(queen, "row"); // before changes are made to the queen.row
        queen.setRow(toRow);
        scoreDirector.afterVariableChanged(queen, "row"); // after changes are made to the queen.row
    }

You need to call the scoreDirector.beforeVariableChanged(Object, String) and scoreDirector.afterVariableChanged(Object, String) methods directly before and after modifying the entity.

Planner automatically filters out non doable moves by calling the isMoveDoable(ScoreDirector) method on a move. A non doable move is:

In the n queens example, a move which moves the queen from its current row to the same row isn't doable:

    public boolean isMoveDoable(ScoreDirector scoreDirector) {
        return !ObjectUtils.equals(queen.getRow(), toRow);
    }

Because we won't generate a move which can move a queen outside the board limits, we don't need to check it. A move that is currently not doable could become doable on the working Solution of a later step.

Each move has an undo move: a move (normally of the same type) which does the exact opposite. In the example above the undo move of C0 to C2 would be the move C2 to C0. An undo move is created from a Move, before the Move has been done on the current solution.

    public Move createUndoMove(ScoreDirector scoreDirector) {
        return new RowChangeMove(queen, queen.getRow());
    }

Notice that if C0 would have already been moved to C2, the undo move would create the move C2 to C2, instead of the move C2 to C0.

A solver phase might do and undo the same Move more than once. In fact, many solver phases will iteratively do and undo a number of moves to evaluate them, before selecting one of those and doing that move again (without undoing it this time).

A Move must implement the getPlanningEntities() and getPlanningValues() methods. They are used by entity tabu and value tabu respectively. When they are called, the Move has already been done.

    public List<? extends Object> getPlanningEntities() {
        return Collections.singletonList(queen);
    }

    public Collection<? extends Object> getPlanningValues() {
        return Collections.singletonList(toRow);
    }

If your Move changes multiple planning entities, return all of them in getPlanningEntities() and return all their values (to which they are changing) in getPlanningValues().

    public Collection<? extends Object> getPlanningEntities() {
        return Arrays.asList(leftCloudProcess, rightCloudProcess);
    }

    public Collection<? extends Object> getPlanningValues() {
        return Arrays.asList(leftCloudProcess.getComputer(), rightCloudProcess.getComputer());
    }

A Move must implement the equals() and hashCode() methods. 2 moves which make the same change on a solution, should be equal.

    public boolean equals(Object o) {
        if (this == o) {
            return true;
        } else if (o instanceof RowChangeMove) {
            RowChangeMove other = (RowChangeMove) o;
            return new EqualsBuilder()
                    .append(queen, other.queen)
                    .append(toRow, other.toRow)
                    .isEquals();
        } else {
            return false;
        }
    }

    public int hashCode() {
        return new HashCodeBuilder()
                .append(queen)
                .append(toRow)
                .toHashCode();
    }

Notice that it checks if the other move is an instance of the same move type. This instanceof check is important because a move will be compared to a move with another move type if you're using more than 1 move type.

Implement the toString() method to keep Planner's logs readable:

    public String toString() {
        return queen + " {" + queen.getRow() + " -> " + toRow + "}";
    }

Now that we can implement a single custom Move, let's take a look at generating such custom moves.
